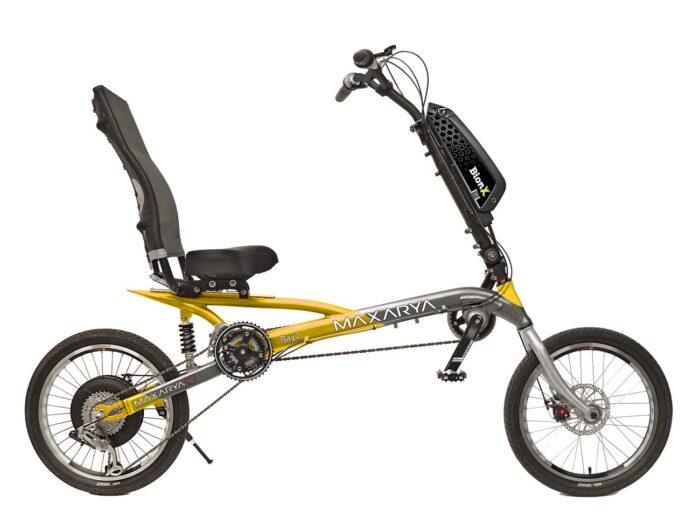

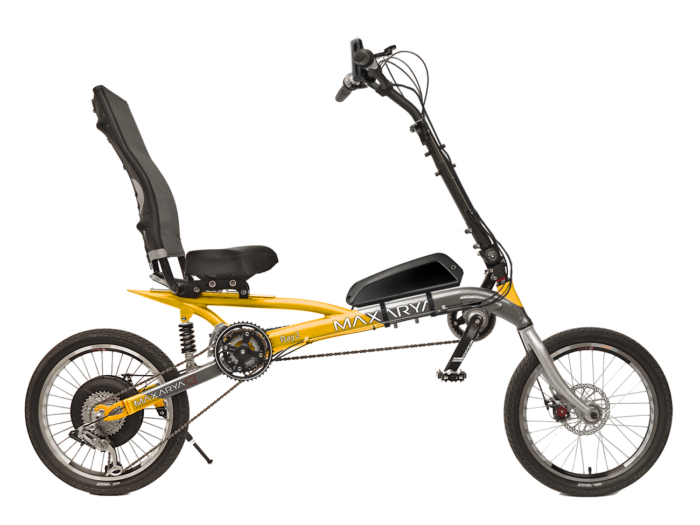

Ray 2E

Ray 2E

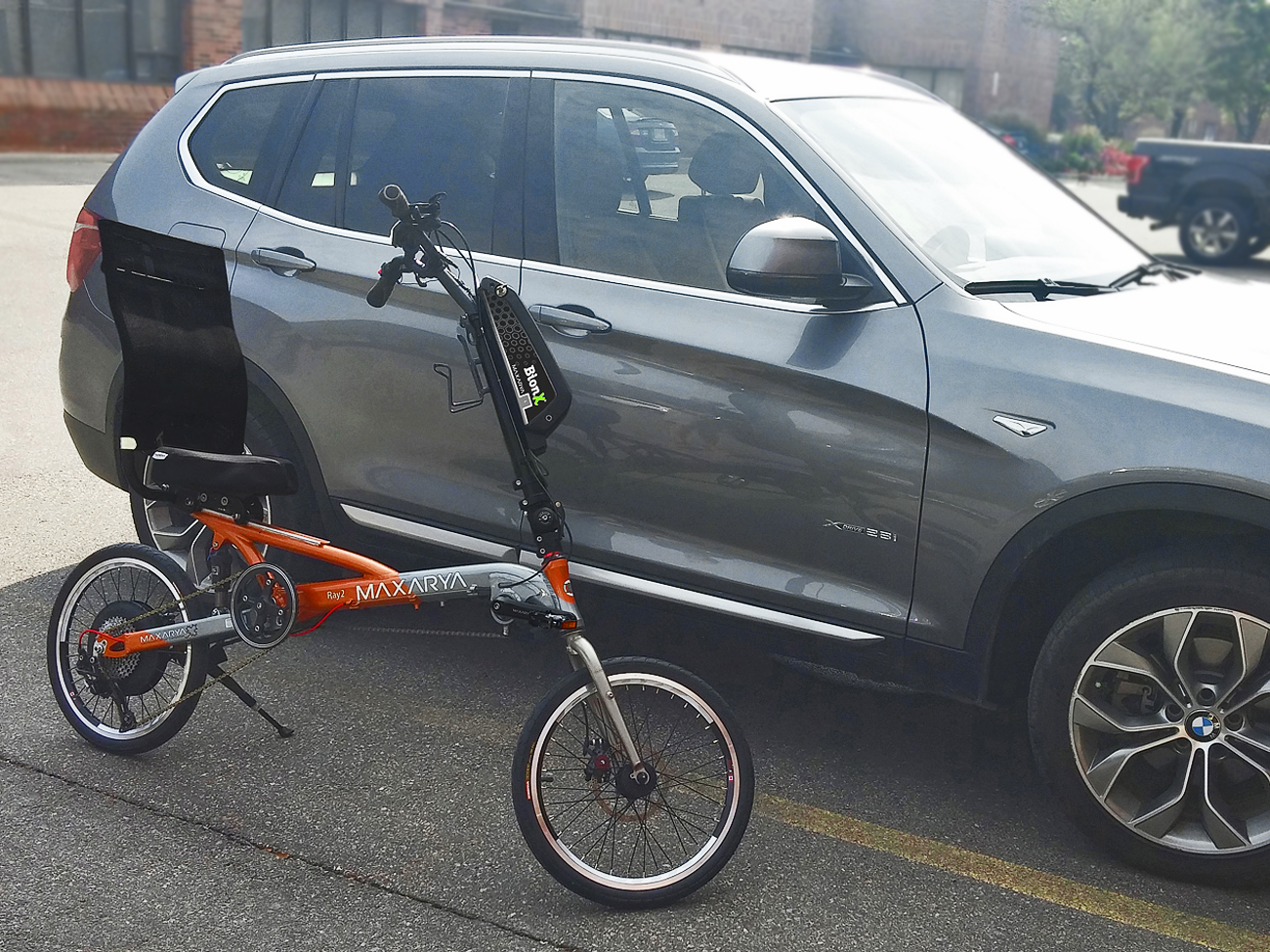

An efficient and refined electric-assist system on a recumbent bike could be the best feature a recumbent rider can get; especially if used for longer tours or on hilly areas. You’ll have the assist as an energy backup, the up and downs of your path won’t scare you anymore and you never arrive exhausted and will have more control over your longer rides. The bike still functions great if you prefer to keep the electric-assist off and have some exercise.

Ray 2E can be ordered with a 250W/36V, 350W/48V or 500W/48V motor and 8Ah to 16Ah battery pack which offer a range of up to 75km- 180km (47mi- 112mi)per charge. Using only high quality and reliable Samsung, LG or Sony cells, the battery pack has a life of about 1000 cycles.

This is what many of our customers have been asking for it. We have dedicated two full years of research and development toward the development of our bikes, and it has resulted in machines that offer unprecedented versatility, performance, superior balance and stunning futuristic style. Avoid the ordinary!



Our totally redesigned Ray 2 series of recumbent bicycles are the third generation of the beloved Ray 1, which first introduced in 1999 as a new alternative to conventional and tiring cycling. Our extensive research and development during last 20 year resulted unprecedented workmanship, comfort and performance of these new Ray 2 models

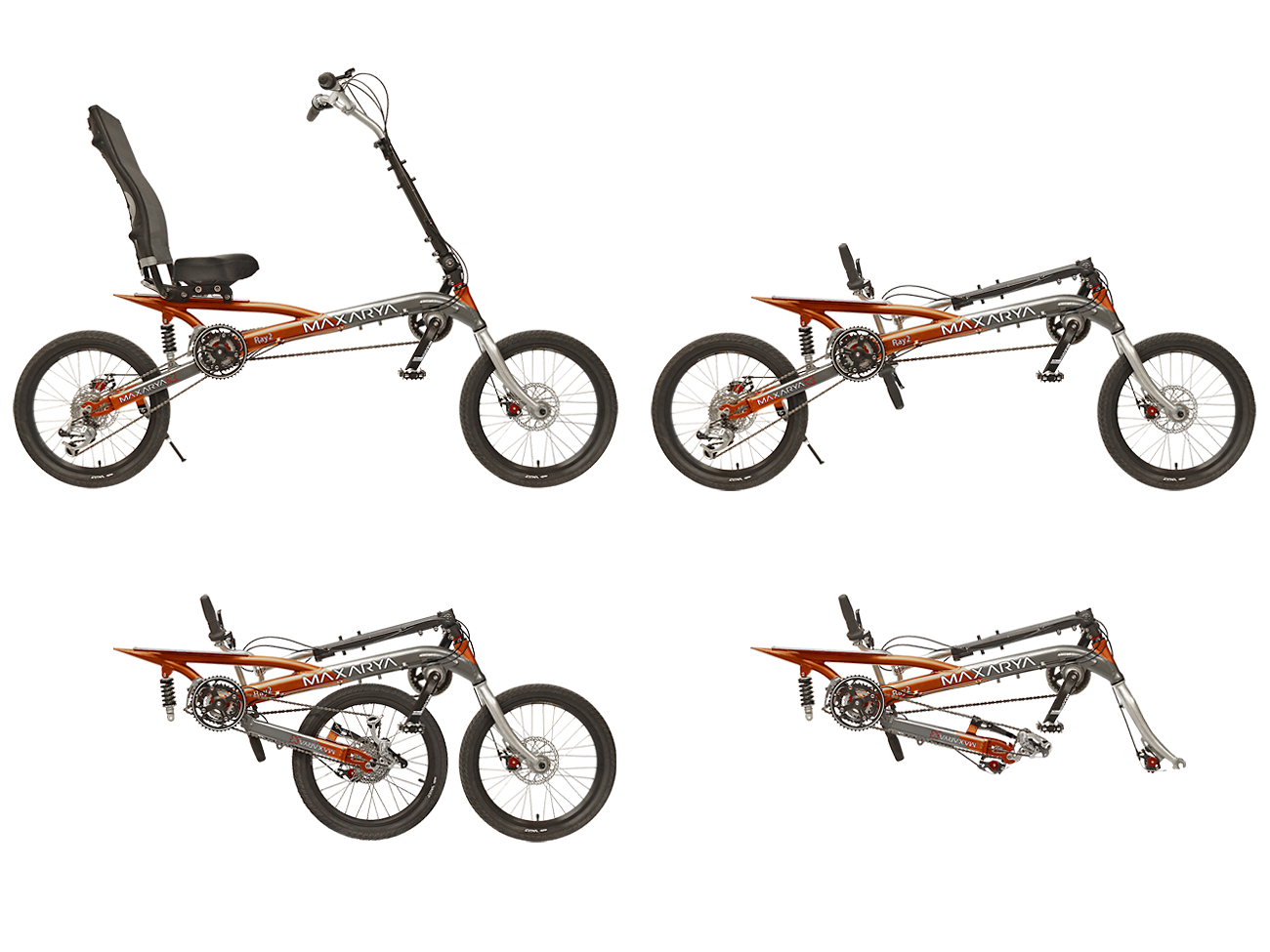

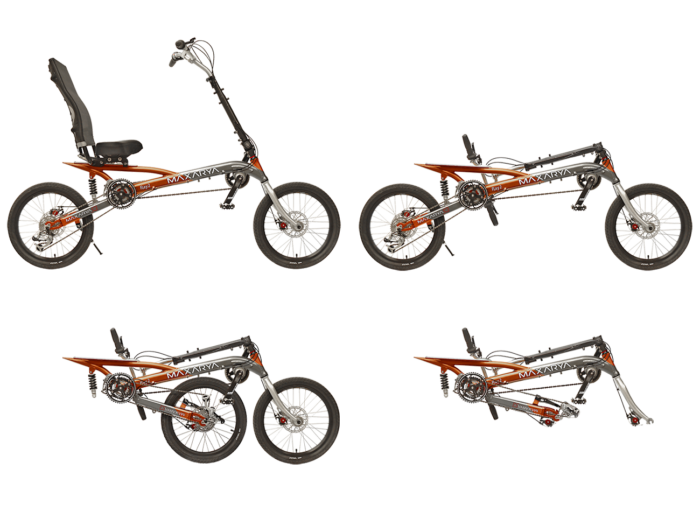

They come with several innovative features including our most comfortable seats, electric-assist-ready stem and a unique folding mechanism, which allows easier transportation. They are stylish, lightweight, exceptionally comfortable, and built to last. Their wide gear inch ratios offer great performance on any occasions.

Their well-thought out geometry makes them versatile as they are globally used on congested urban streets, commuting to work and long tours out of town.

Their flawless suspension system and the sophisticated seat design ensure smooth and pleasant rides on any bumpy paths while fast and agile on roads. They come in two sizes covering riders from 4’10” to 6’ 8” (148-203cm) weighing up to 300Lbs. (135kg).

Ridden over 40 million km worldwide, they are believed and trusted to be the best CLWB recumbent bicycles ever built!

Try one and you will never go back to any other bike again!

RAY 2X Technical Specifications
Frame: AL7005 T6 heat-treated, disc brake, built-in kickstand bracket
Seat: Alloy frame with mesh, fully adjustable
Saddle: MAXARYA double-density foam, composite flex base, adjustable

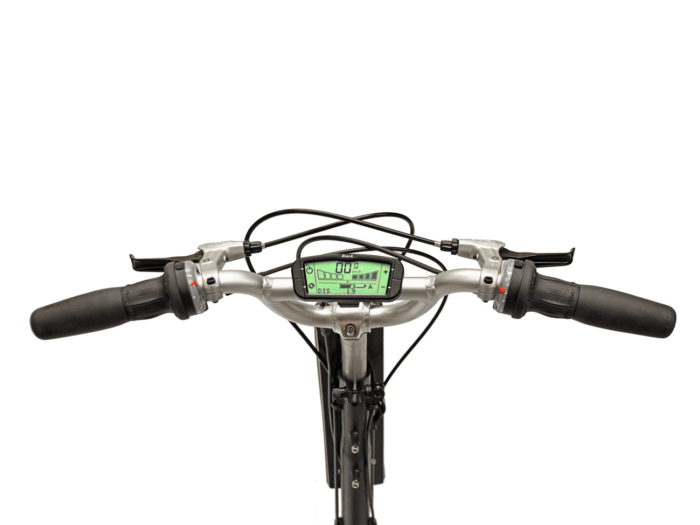

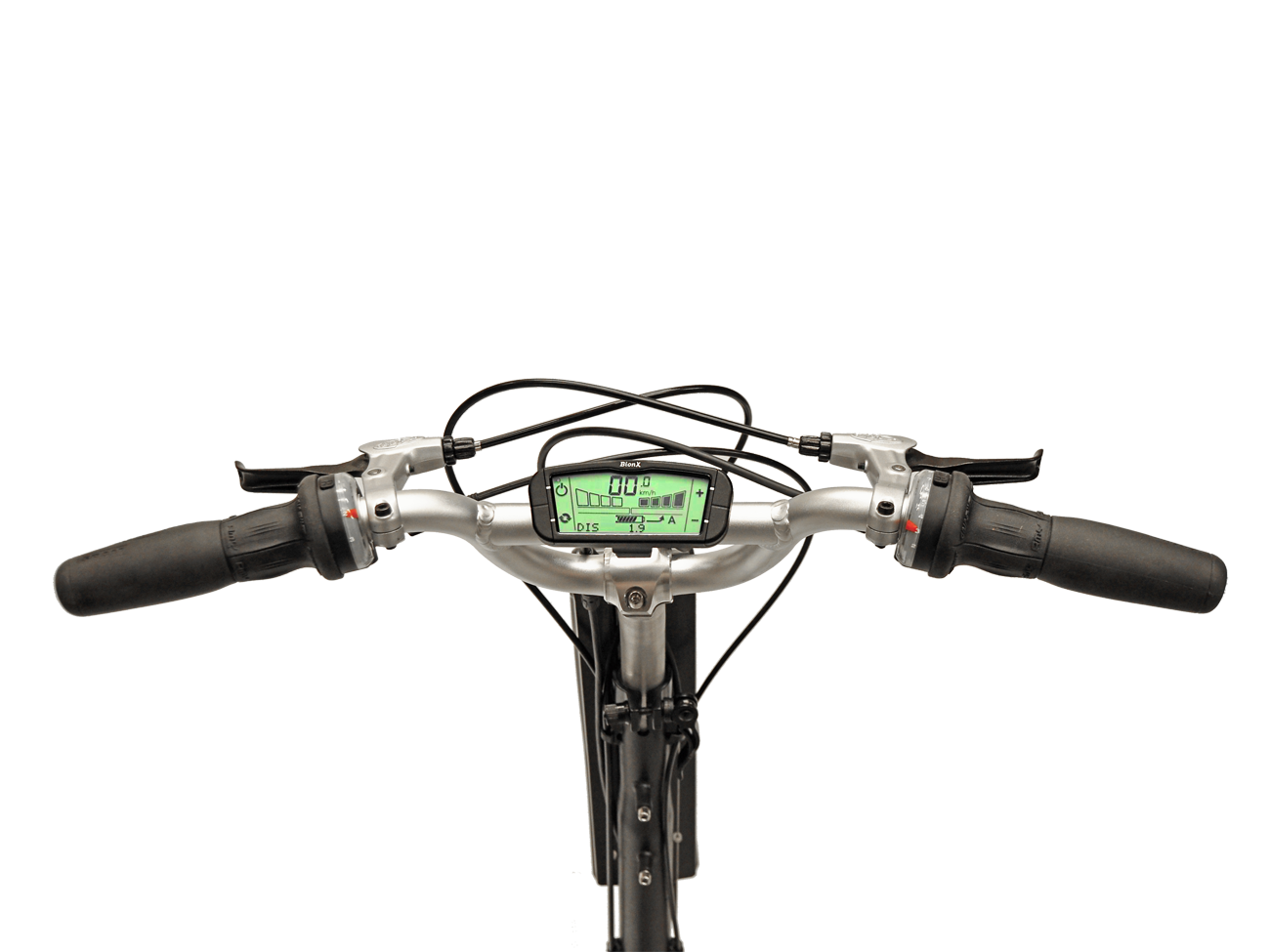

Handlebar: MAXARYA alloy, 610mm width, matte black, 100mm rise, w/riser
Stem: Alloy matte black, adjustable/Electric-assist ready
Fork: MAXARYA full alloy, scotch bristle finish, 1 1/8” threadless, disc brake
Headset: MAXARYA internal, 44mm, sealed bearings
Bottom bracket: FPD CH55 alloy, sealed
Crankset: MAXARYA alloy 32T w/alloy chainguard (optional 152mm)
MidDrive set: MAXARYA alloy 44/32/22T
Left chain: KMC Z54, 3/32” non-slip
Right chain: KMC Z99
Rear shock: Coil/oil/gas 750Lbs/In (optional 850/900/1000Lbs/In)
Front derailleur: Shimano Deore
Rear derailleur: Sram X.7 8 speed/X.9 9 speed (optional)
Shifter: Sram X.7 8×3 speed (optional X.9 9×3 speed)
Cassette: Sram 11-32T 8 speed (optional X.9 9 speed)
Brakes: Avid BB-7 disc brake
Front wheel: MAXARYA alloy black, eyelets, sealed hub 32H
Rear wheel: MAXARYA alloy black, eyelets, Electric hub motor hub 8/9/10 speed, 36H
Electric system: 350W/36V 500W/48W, lower stem battery pack
Spokes: Stainless steel, silver 14G/13G
Tires: Schwalbe Marathon 1.75”x20”, puncture-proof
Pedals: FPD alloy, black body w/cateye reflector
Overall length: S: 72” (1,830mm) L: 76” (1,930mm)
Wheelbase: S: 53”, (1,350mm) L: 56.5” (1,430mm)
Seat height: 26”-27” (660-685mm)
BB height: 20” (510mm)
Weight: 43-46 Lbs. (19-21.5kg)
Weight limit: 300 Lbs. (135 kg) Combined rider, bike and cargo
Rider’s height: S: 4’ 10”-6’ 2” (148-188cm) L: 5’ 8”-6’ 8” (173-203cm)
Gear inch ratio: 19”-110” (48-279cm),
Colour: Copper, True Blue, Sport Yellow, Lava Red, Lime Green
MSRP: Standard: $US   Large: $US
