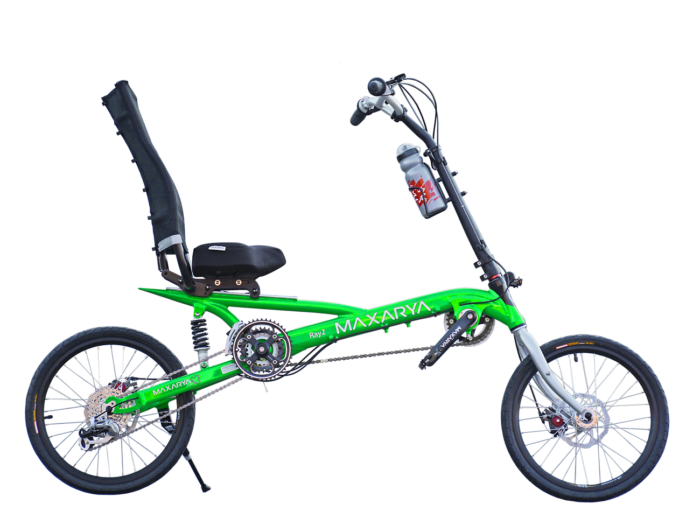

As our best-seller, Ray 2 is a versatile and high performance bike and is considered as the best value for money on the market. 24 speed SRAM X.7 drivetrain, rear suspension and front/rear disc brakes are standard. There are also several options to make it your dream bike. It comes in two sizes and five vibrant and attractive colours.
$2,126.46 – $2,159.79
Our totally redesigned Ray 2 series of recumbent bicycles are the third generation of the beloved Ray 1, which first introduced in 1999 as a new alternative to conventional and tiring cycling. Our extensive research and development during last 20 year resulted unprecedented workmanship, comfort and performance of these new Ray 2 models

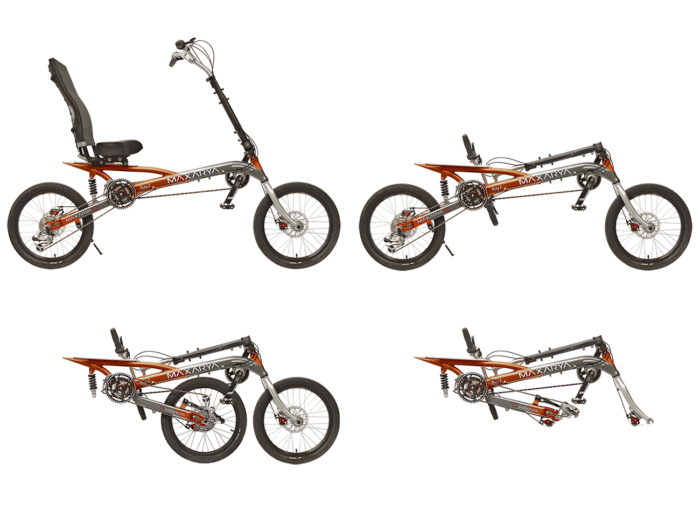

They come with several innovative features including our most comfortable seats, electric-assist-ready stem and a unique folding mechanism, which allows easier transportation. They are stylish, lightweight, exceptionally comfortable, and built to last. Their wide gear inch ratios offer great performance on any occasions.
Their well-thought out geometry makes them versatile as they are globally used on congested urban streets, commuting to work and long tours out of town.
Their flawless suspension system and the sophisticated seat design ensure smooth and pleasant rides on any bumpy paths while fast and agile on roads. They come in two sizes covering riders from 4’-10” to 6’ 8” (148-203cm) weighing up to 300Lbs. (135kg).
Ridden over 40 million km worldwide, they are believed and trusted to be the best CLWB recumbent bicycles ever built!
Try one and you will never go back to any other bike again!
|RAY 2X||Technical Specifications|
|Frame:||AL7005 T6 heat-treated, disc brake, built-in kickstand bracket|
|Seat:||Alloy frame with mesh, fully adjustable|
|Saddle:||MAXARYA double-density foam, composite flex base, adjustable|
|Handlebar:||MAXARYA alloy, 610mm width, matte black, 100mm rise, w/riser|
|Stem:||Alloy matte black, adjustable/Electric-assist ready|
|Fork:||MAXARYA full alloy, scotch bristle finish, 1 1/8” threadless, disc brake|
|Headset:||MAXARYA internal, 44mm, sealed bearings|
|Bottom bracket:||FPD CH55 alloy, sealed|
|Crankset:||MAXARYA alloy 32T w/alloy chainguard (optional 152mm)|

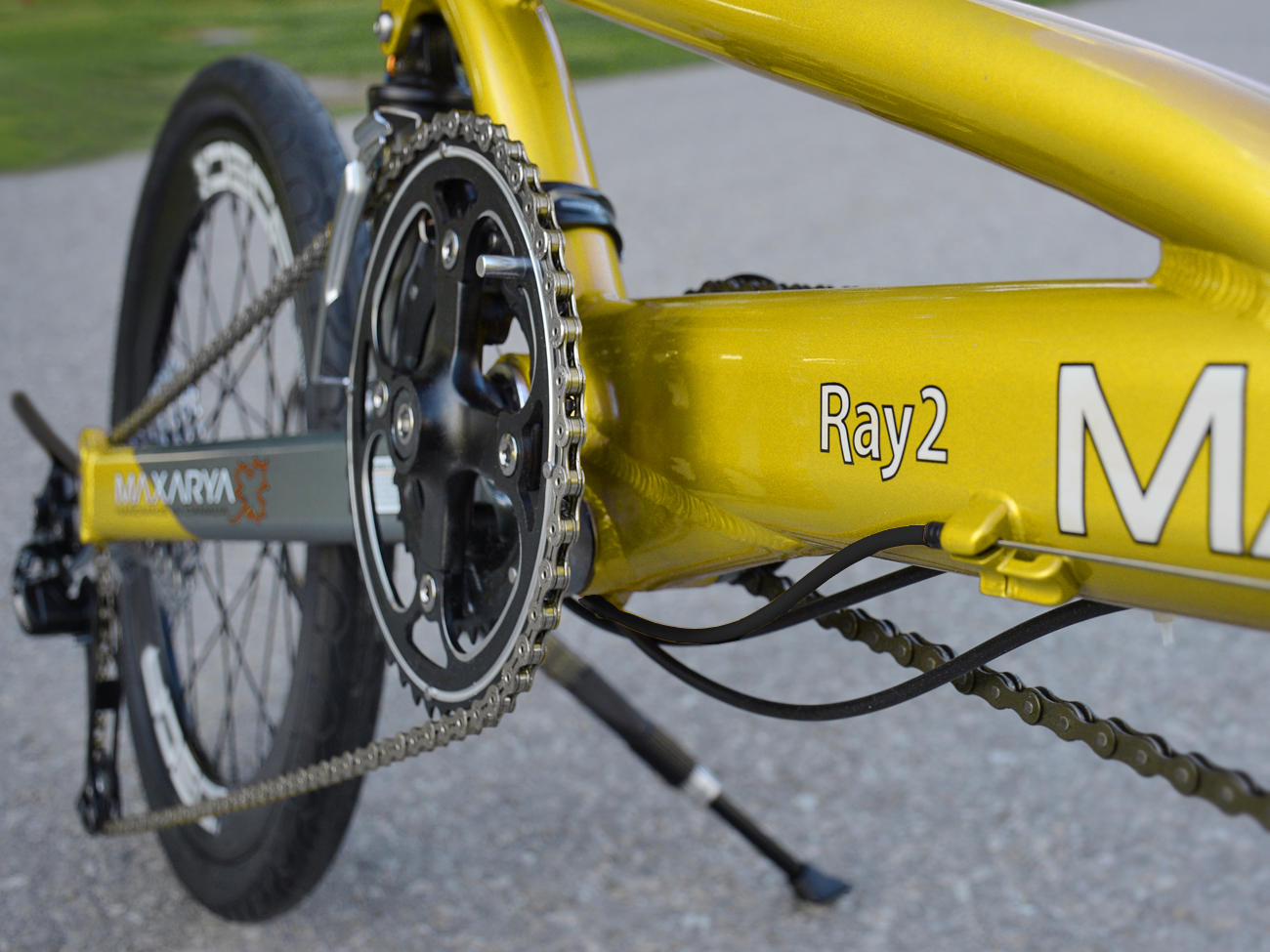

|MidDrive set:||MAXARYA alloy 44/32/22T|
|Left chain:||KMC Z54, non-slip|
|Right chain:||KMC Z99|
|Rear shock:||Coil/oil/gas 750Lbs/In (optional 850/900/1000Lbs/In)|
|Front derailleur:||Shimano Deore|
|Rear derailleur:||Sram X.7 8 speed/X.9 9 speed (optional)|
|Shifter:||Sram X.7 8×3 speed (optional X.9 9×3 speed)|
|Cassette:||Sram 11-32T 8 speed (optional X.9 9 speed)|
|Brakes:||Avid BB7 disc brake|

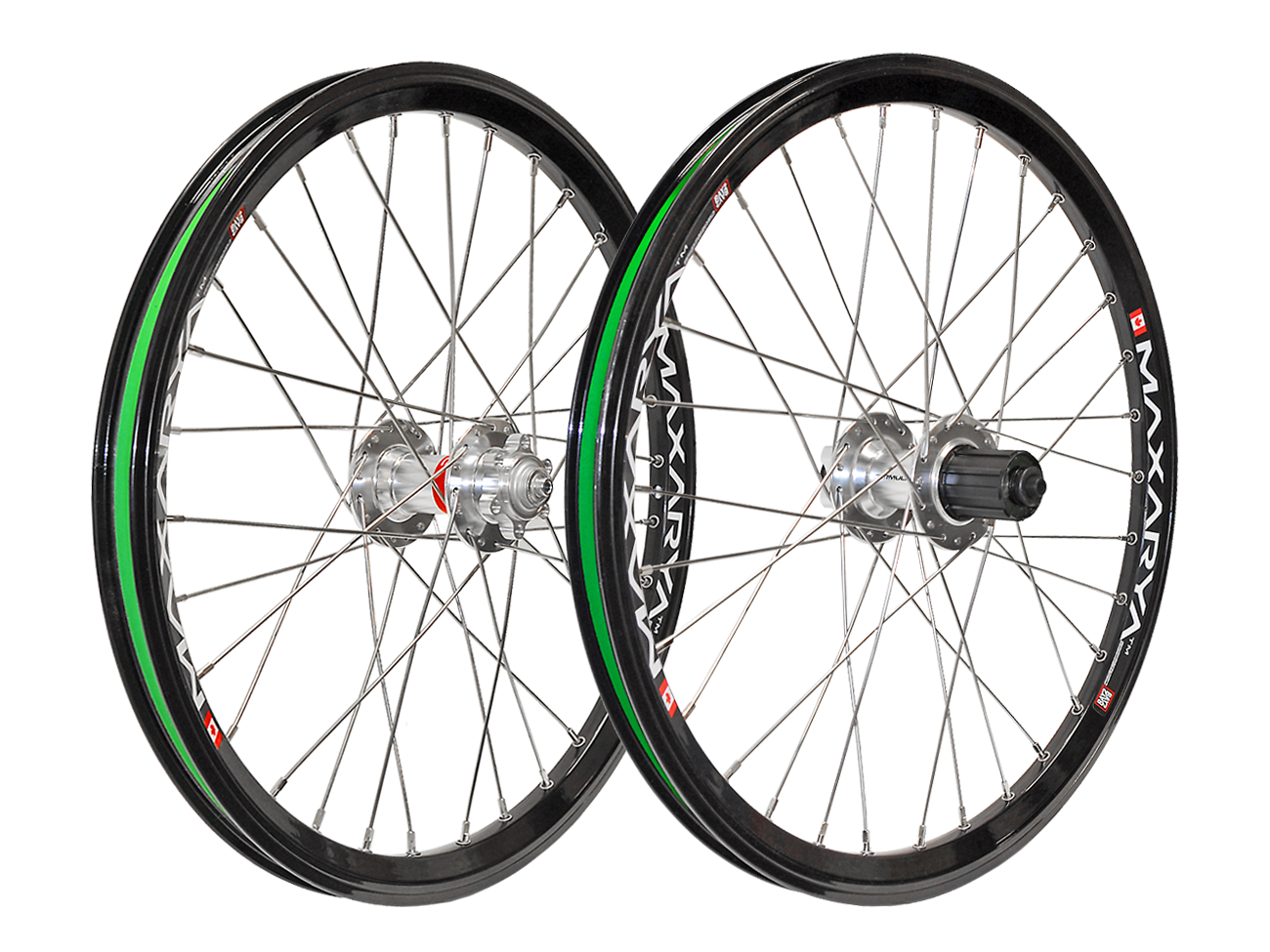

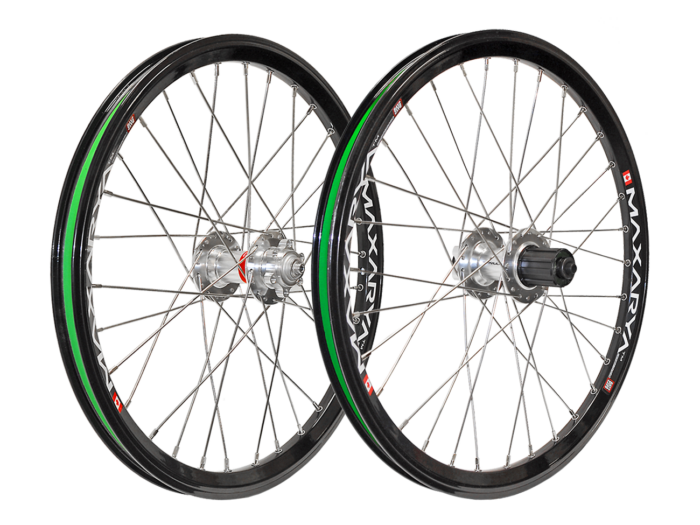

|Front wheel:||MAXARYA alloy black, eyelets, sealed hub 32H|
|Rear wheel:||MAXARYA alloy black, eyelets, sealed hub 8/9/10 speed, 32H|
|Spokes:||DT Swiss stainless steel, silver 14G|
|Tires:||Schwalbe Marathon 1.75”x20”, puncture-proof|
|Pedals:||FPD alloy, black body w/cateye reflector|
|Overall length:||S: 72” (1,830mm) L: 76” (1,930mm)|
|Wheelbase:||S: 53”, (1,350mm) L: 56.5” (1,430mm)|
|Seat height:||26”-27” (660-685mm)|
|BB height:||20” (510mm)|
|Weight:||33 Lbs. (15kg)|
|Weight limit:||300 Lbs. (135 kg) Combined rider, bike and cargo|
|Rider’s height:||S: 4’ 10”-6’ 2” (148-188cm) L: 5’ 8”-6’ 8” (173-203cm)|
|Gear inch ratio:||19”-110” (48-279cm)|
|Colour:||Copper, True Blue, Sport Yellow, Lava Red, Lime Green|
|MSRP:||Standard: $1,665US Large: $1,690US|
Metallic copper, True Blue, Sport yellow, Lava red, Lime green
