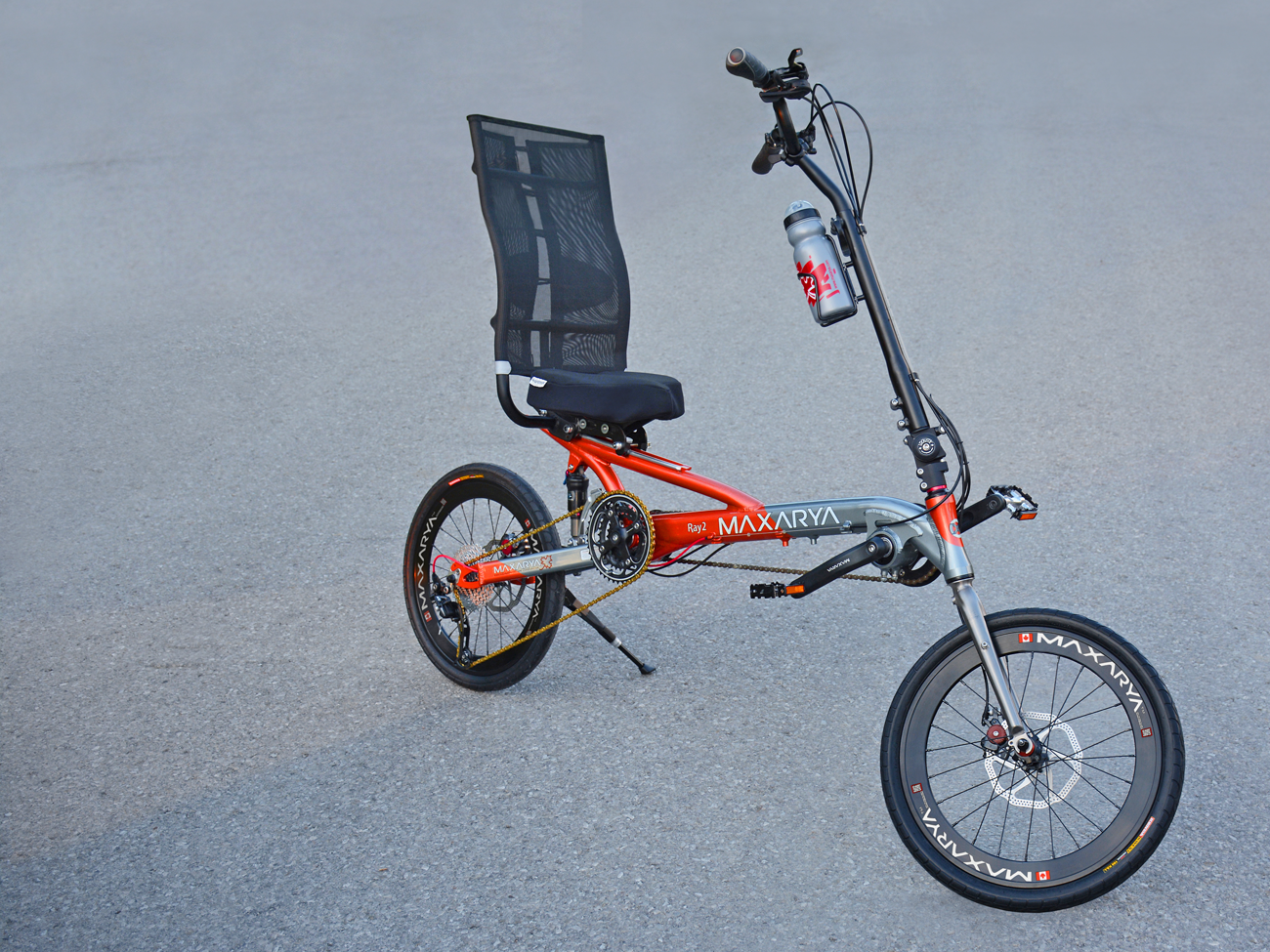

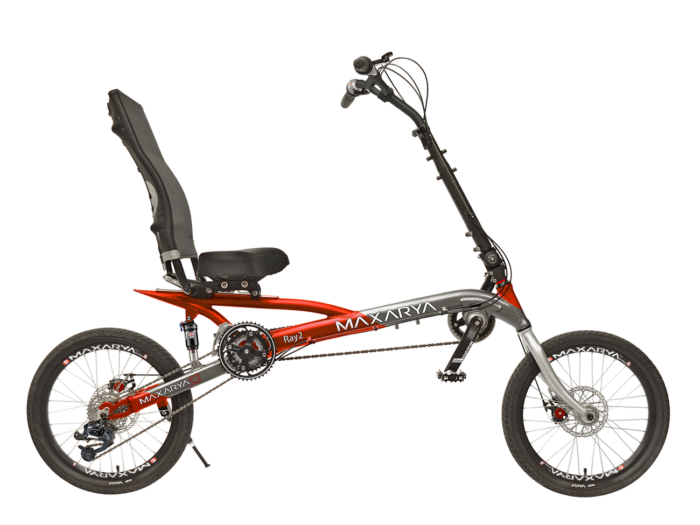

Ray 2X

Ray 2X


Some extras of everything! It’s lightweight, fast and loaded with high quality components: 20/30 speed SHIMANO DYNASYS system makes changing the gears unexpectedly smooth. The sophisticated AIR rear suspension absorbs the smallest bumps on your paths. With up to 600% of drivetrain ratio, it performs wonderfully on high cruising speeds and also capable of climbing steep hills easily. Our own refined and eye-catching wheelset, meticulous attention to details and stunning two-tone colours make this model a real marvel!

SKU: N/A Category:


Our totally redesigned Ray 2 series of recumbent bicycles are the third generation of the beloved Ray 1, which first introduced in 1999 as a new alternative to conventional and tiring cycling. Our extensive research and development during last 20 year resulted unprecedented workmanship, comfort and performance of these new Ray 2 models

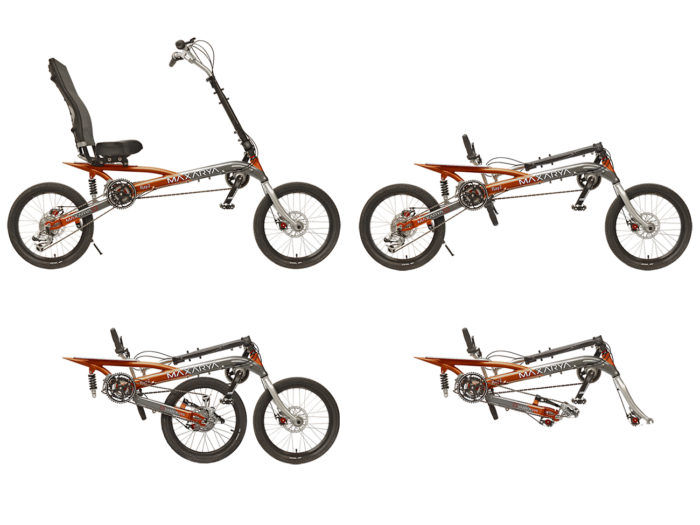

They come with several innovative features including our most comfortable seats, electric-assist-ready stem and a unique folding mechanism, which allows easier transportation. They are stylish, lightweight, exceptionally comfortable, and built to last. Their wide gear inch ratios offer great performance on any occasions.

Their well-thought out geometry makes them versatile as they are globally used on congested urban streets, commuting to work and long tours out of town.

Their flawless suspension system and the sophisticated seat design ensure smooth and pleasant rides on any bumpy paths while fast and agile on roads. They come in two sizes covering riders from 4’-10” to 6’-8” (148-203cm) weighing up to 300Lbs. (135kg).

Ridden over 40 million km worldwide, they are believed and trusted to be the best CLWB recumbent bicycles ever built!

Try one and you will never go back to any other bike again!

RAY 2X Technical Specifications
Frame: AL7005 T6 heat-treated, disc brake, built-in kickstand bracket
Seat: Alloy frame with mesh, fully adjustable
Saddle: MAXARYA double-density foam, composite flex base, adjustable
Handlebar: MAXARYA alloy, 610mm width, matte black, 100mm rise, w/riser
Stem: Alloy matte black, adjustable/Electric-assist ready
Fork: MAXARYA full alloy, scotch bristle finish, 1 1/8” threadless, disc brake
Headset: MAXARYA internal, 44mm, sealed bearings
Bottom bracket: FPD CH55 alloy, sealed
Crankset: MAXARYA alloy 32T w/alloy chainguard (optional 152mm)
MidDrive set: MAXARYA alloy 44/32/24T
Left chain: KMC Z1 EPT chrome, non-slip, rust-proof
Right chain: SHIMANO X-G 10 speed

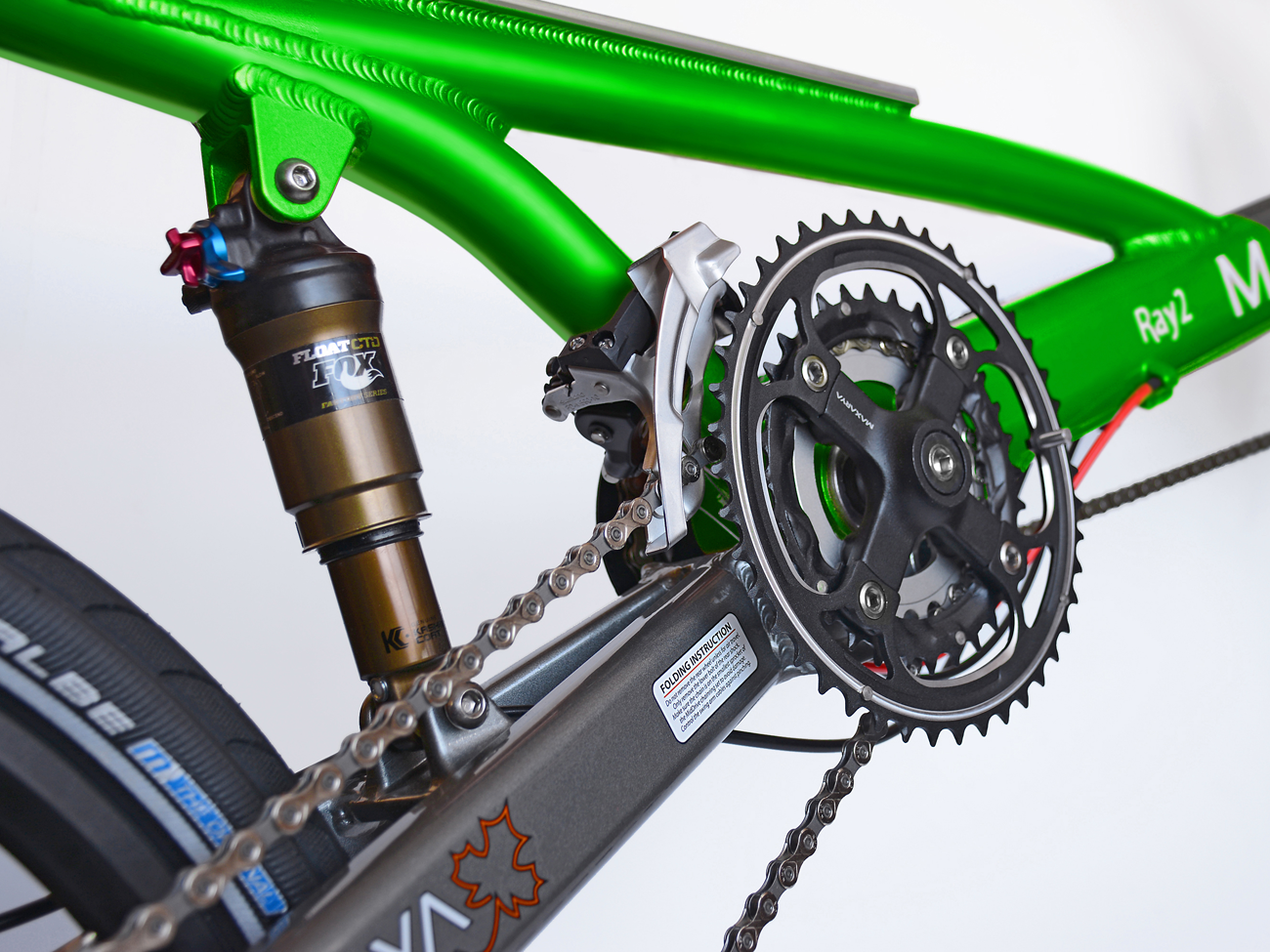

Rear shock: Rockshox Morach R Air (optional Monarch RL Air high volume)
Front derailleur: Shimano XT

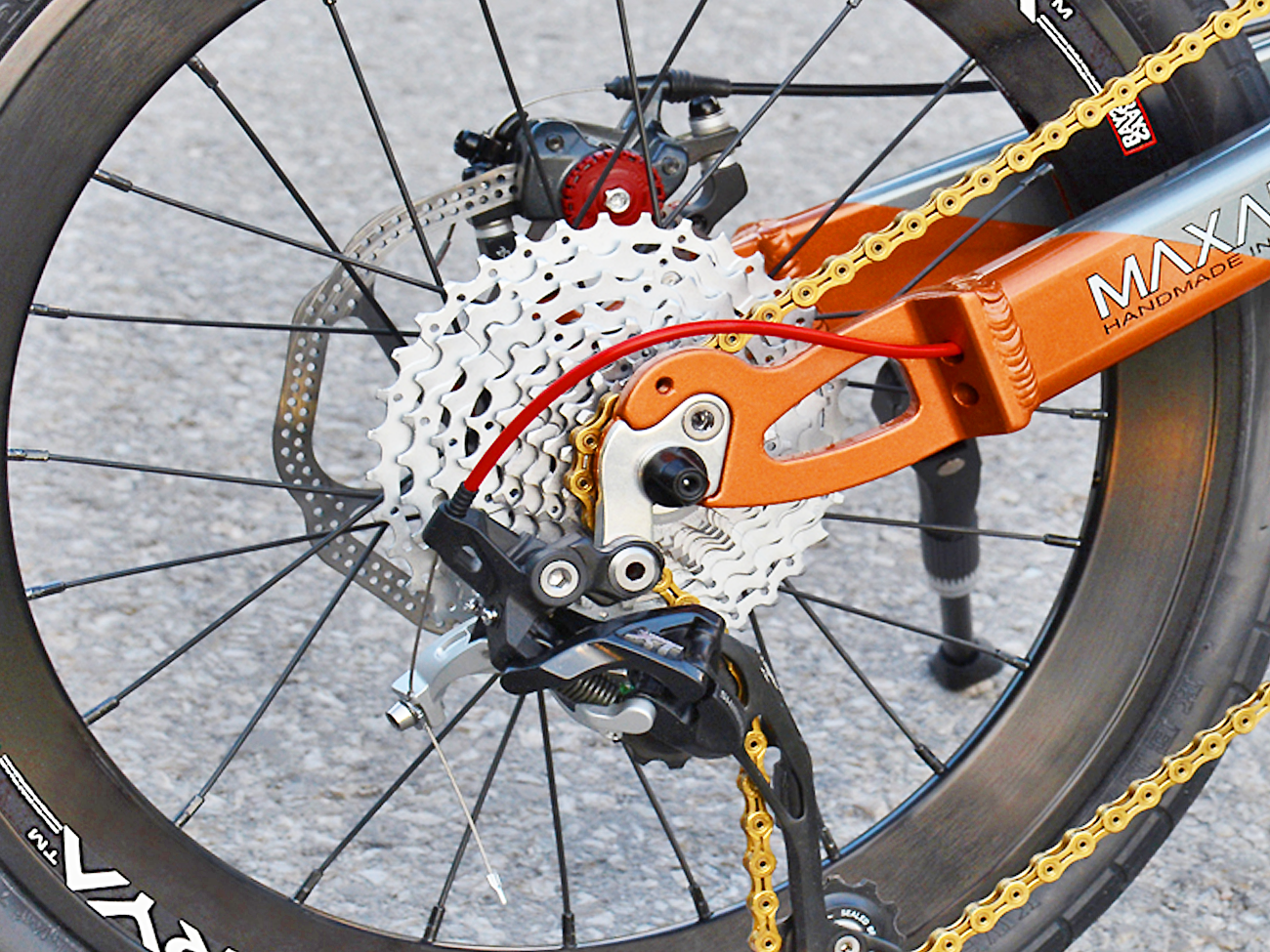

Rear derailleur: Shimano Dynasis, 10(optional 11) speed
Shifter: Shimano Dynasis, 10×3(optional 11×2)
Cassette: Shimano XT 11-36T (optional 11-42/46T)
Brakes: Avid BB7 disc brake (optional Shimano Deore hydraulic disc brake)

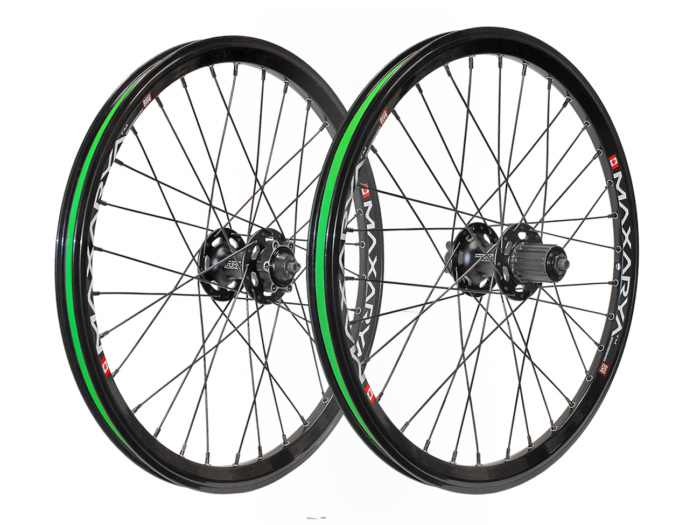

Front wheel: MAXARYA alloy black, eyelets, sealed hub 32H
Rear wheel: MAXARYA alloy black, eyelets, sealed hub 8/9/10/11 speed, 32H
Spokes: DT Swiss stainless steel, silver 14G
Tires: Schwalbe Marathon Plus 1.75”x20”, puncture-proof
Pedals: FPD alloy, black body w/cateye reflector
Overall length: S: 72” (1,830mm) L: 76” (1,930mm)
Wheelbase: S: 53”, (1,350mm) L: 56.5” (1,430mm)
Seat height: 26”-27” (660-685mm)
BB height: 20” (510mm)
Weight: 30.5 Lbs. (13.5kg)
Weight limit: 300 Lbs. (135 kg) Combined rider, bike and cargo
Rider’s height: S: 4’ 10”-6’ 2” (148-188cm) L: 5’ 8”-6’ 8” (173-203cm)
Gear inch ratio: 18”-112” (46-284cm)
Colour: Copper, True Blue, Sport Yellow, Lava Red, Lime Green (w/metallic gray)
MSRP: Standard: $2,795US Large: $2,820US

Additional information


Standard, Large


Metallic copper, True Blue, Sport yellow, Lava red, Lime green
