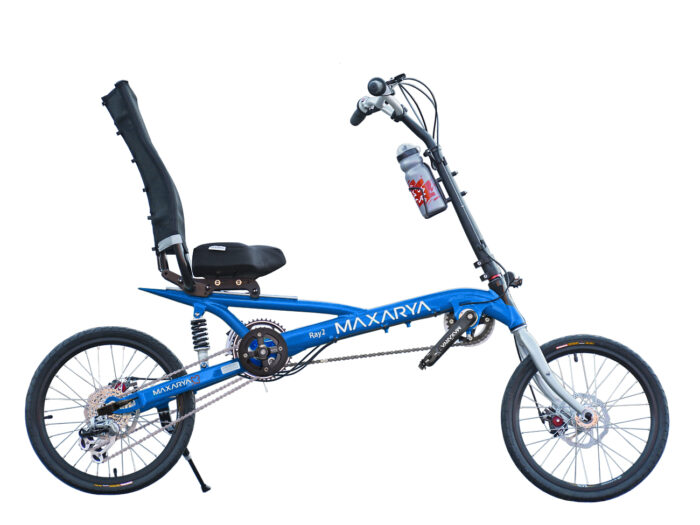

Ray 2D

Ray 2D


With the same outstanding quality and features of Ray 2, Ray 2D comes with the world-renowned Sarm Dualdrive drivetrain which allows an exceptionally high gear-inch ratio of 578% throughout its 27 speeds and easily managed by a single right hand shifter. Ray 2D allows changing three of its gears internally without the use of a front derailleur. Therefore, you don’t need to worry about putting extra pressure on your legs when coming to a sudden halt. A click on its shifter’s lever brings the gear to a lower level making the start a breeze.

SKU: N/A Category:


Our totally redesigned Ray 2 series of recumbent bicycles are the third generation of the beloved Ray 1, which first introduced in 1999 as a new alternative to conventional and tiring cycling. Our extensive research and development during last 20 year resulted unprecedented workmanship, comfort and performance of these new Ray 2 models

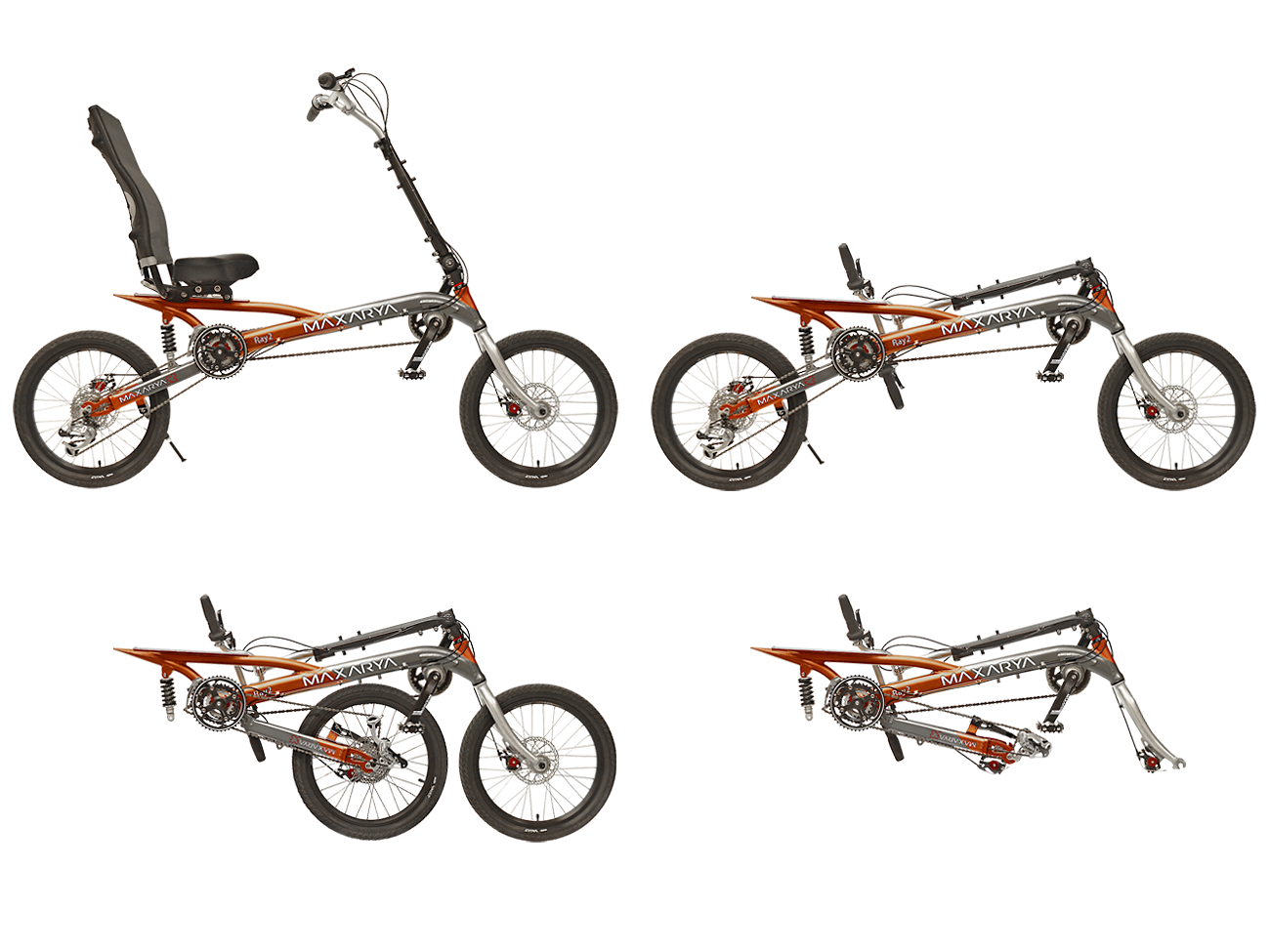

They come with several innovative features including our most comfortable seats, electric-assist-ready stem and a unique folding mechanism, which allows easier transportation. They are stylish, lightweight, exceptionally comfortable, and built to last. Their wide gear inch ratios offer great performance on any occasions.

Their well-thought out geometry makes them versatile as they are globally used on congested urban streets, commuting to work and long tours out of town.

Their flawless suspension system and the sophisticated seat design ensure smooth and pleasant rides on any bumpy paths while fast and agile on roads. They come in two sizes covering riders from 4’-10” to 6’-8” (148-203cm) weighing up to 300Lbs. (135kg).

Ridden over 40 million km worldwide, they are believed and trusted to be the best CLWB recumbent bicycles ever built!

Try one and you will never go back to any other bike again!

RAY 2X Technical Specifications

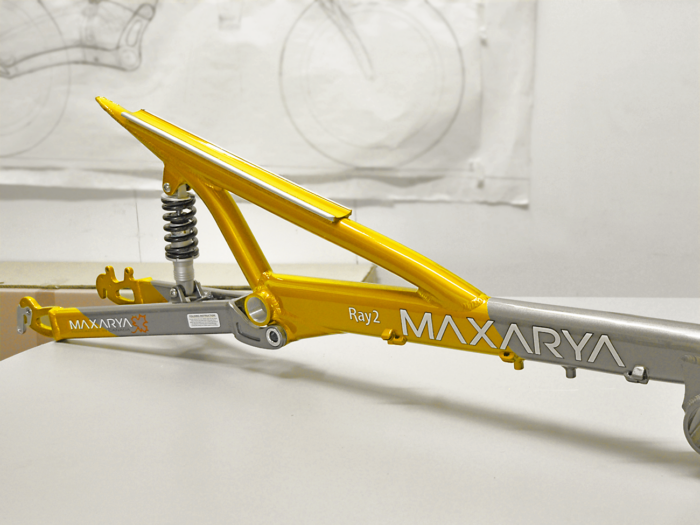

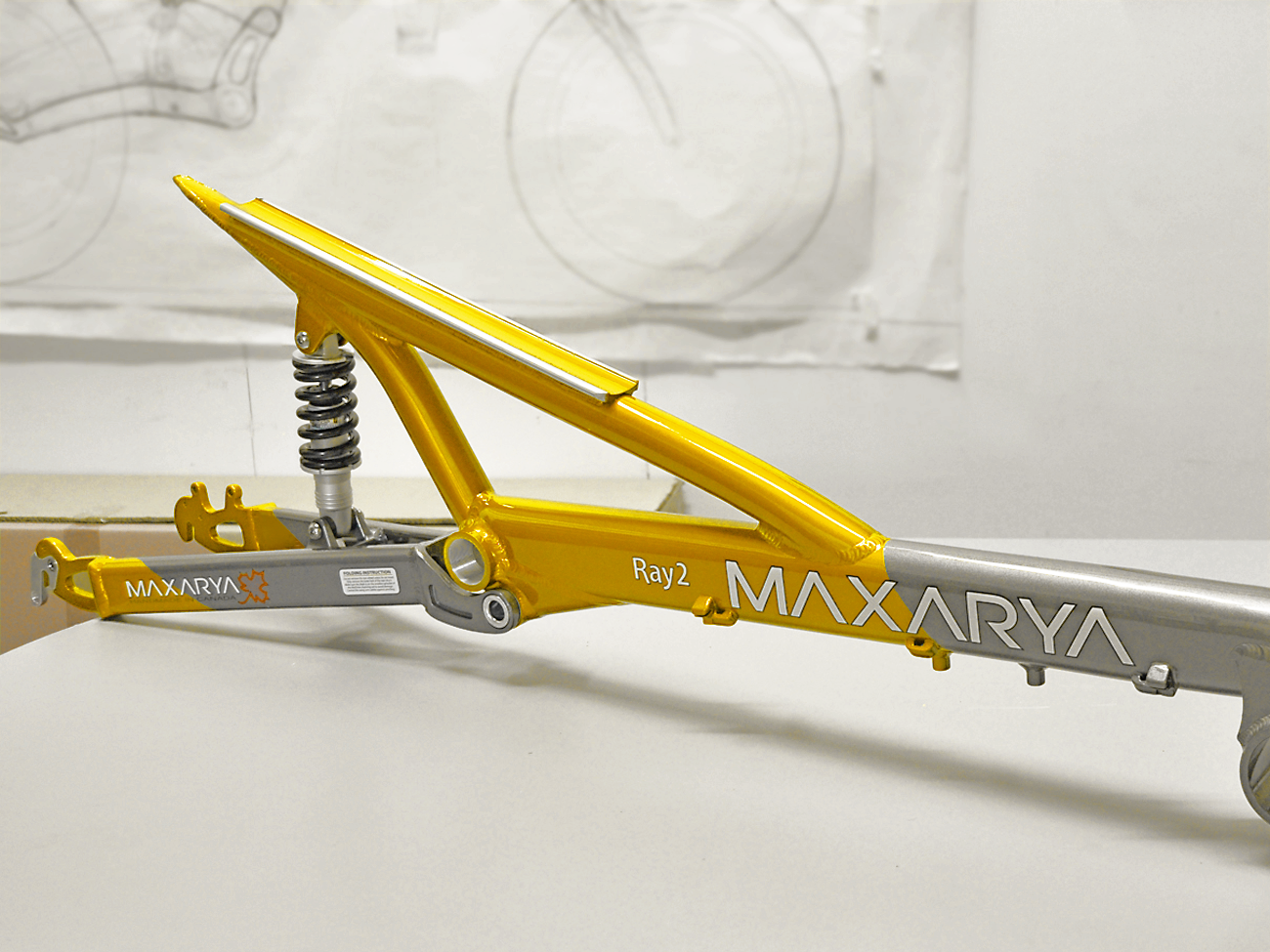

Frame: AL7005 T6 heat-treated, disc brake, built-in kickstand bracket
Seat: Alloy frame with mesh, fully adjustable
Saddle: MAXARYA double-density foam, composite flex base, adjustable
Handlebar: MAXARYA alloy, 610mm width, matte black, 100mm rise, w/riser
Stem: Alloy matte black, adjustable/Electric-assist ready
Fork: MAXARYA full alloy, scotch bristle finish, 1 1/8” threadless, disc brake
Headset: MAXARYA internal, 44mm, sealed bearings
Bottom bracket: FPD CH55 alloy, sealed
Crankset: MAXARYA alloy 32T w/alloy chainguard (optional 152mm)
MidDrive set: MAXARYA alloy 32T (optional 34T)
Left chainset: MAXARYA forged alloy, BCD 64mm, alloy 22T w/chainguard
Left chain: KMC Z54, non-slip
Right chain: KMC Z99
Rear shock: Coil/oil/gas 750Lbs/In (optional 850/900/1000Lbs/In)
Front derailleur: None

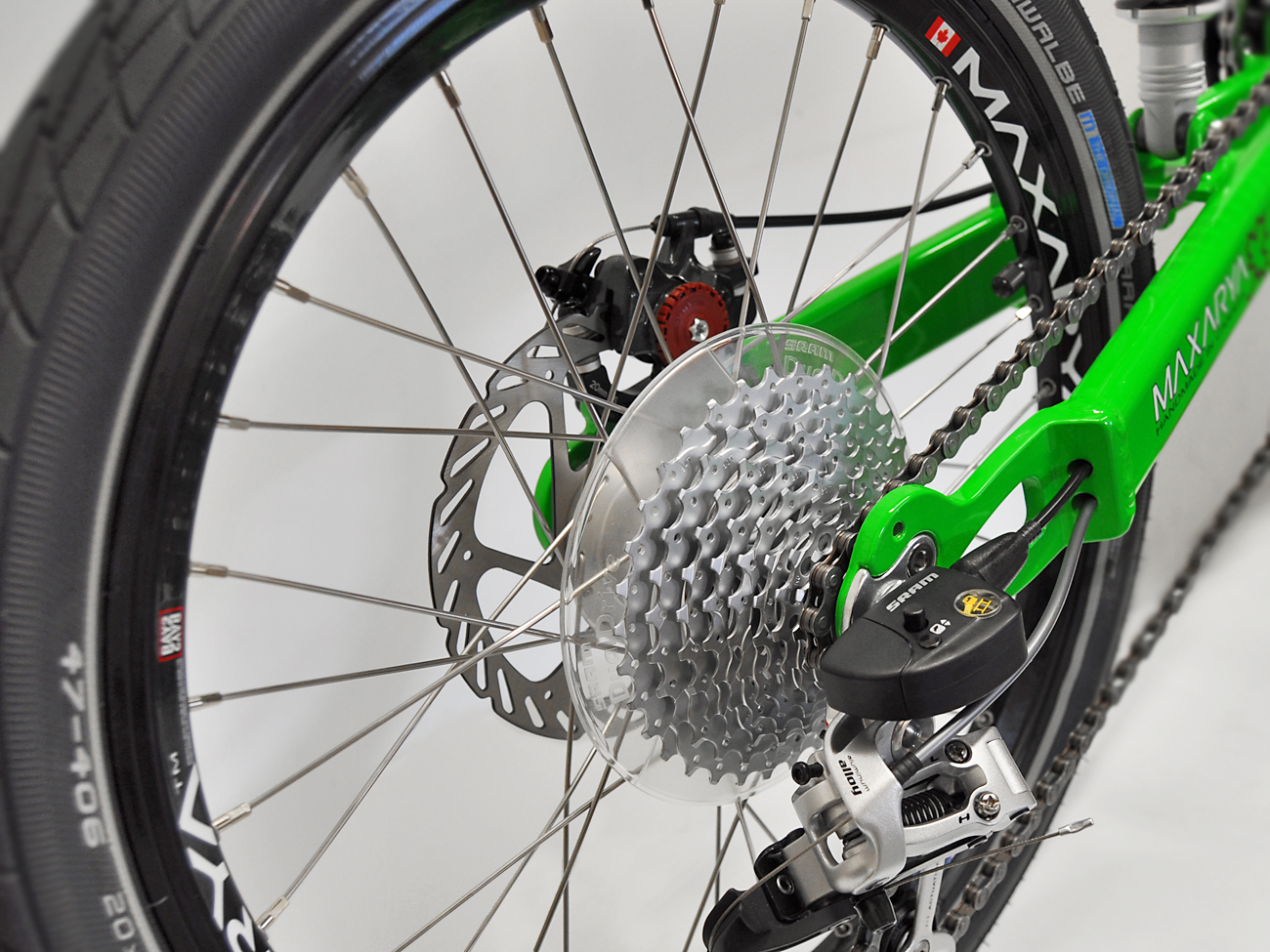

Rear derailleur: Sram DualDrive 9 speed
Shifter: Sram DualDrive single right 27 speed
Cassette: Sram DualDrive 11-34T
Brakes: Avid BB7 disc brake

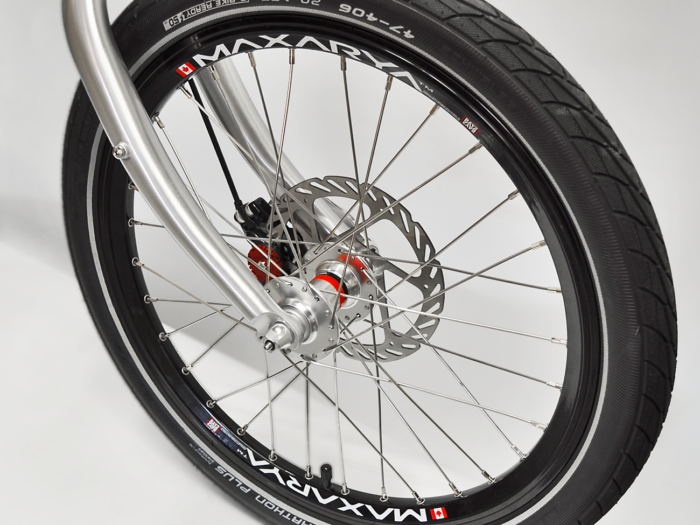

Front wheel: MAXARYA alloy black, eyelets, sealed hub 32H
Rear wheel: MAXARYA alloy black, eyelets, Sram DualDrive 27 speed, 32H
Spokes: DT Swiss stainless steel, silver 14G
Tires: Schwalbe Marathon 1.75”x20”, puncture-proof
Pedals: FPD alloy, black body w/cateye reflector
Overall length: S: 72” (1,830mm) L: 76” (1,930mm)
Wheelbase: S: 53”, (1,350mm) L: 56.5” (1,430mm)
Seat height: 26”-27” (660-685mm)
BB height: 20” (510mm)
Weight: 33 Lbs. (15kg)
Weight limit: 300 Lbs. (135 kg) Combined rider, bike and cargo
Rider’s height: S: 4’ 10”-6’ 2” (148-188cm) L: 5’ 8”-6’ 8” (173-203cm)
Gear inch ratio: 19”-110” (48-279cm)
Colour: Metallic Copper, True Blue, Sport Yellow, Lava Red, Lime Green
MSRP: Standard: $2,285US Large: $2,310US

Additional information


Standard, Large


Metallic copper, True Blue, Sport yellow, Lava red, Lime green
