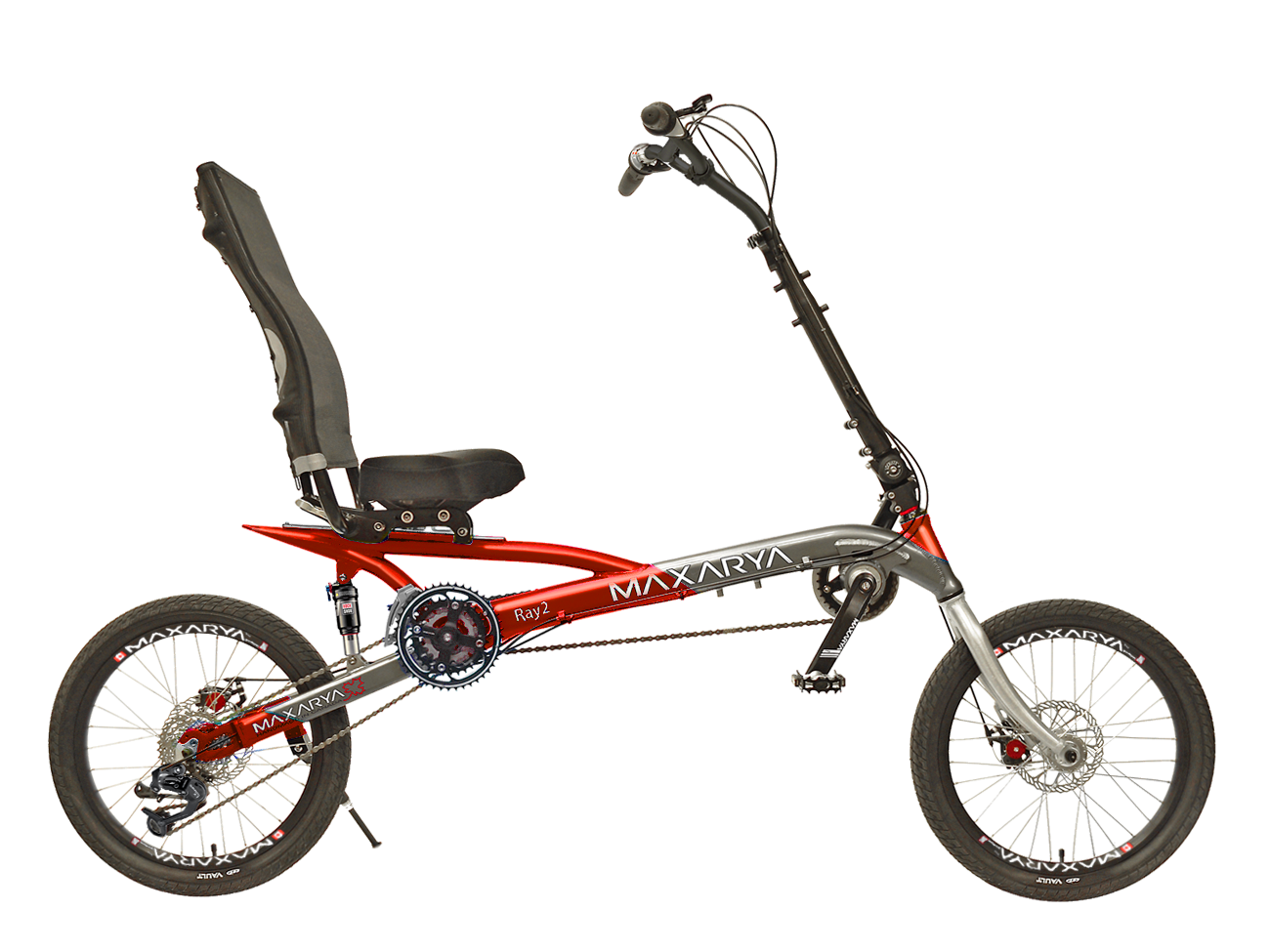

Ray 2X
CA$4049.00CA$3499.00
Some extras of everything! It’s lightweight, fast and loaded with high quality components: 20/30 speed SHIMANO DYNASYS system makes changing the gears unexpectedly smooth. The sophisticated AIR rear suspension absorbs the smallest bumps on your paths. With up to 600% of drivetrain ratio, it performs wonderfully on high cruising speeds and also capable of climbing steep hills easily. Our own refined and eye-catching wheelset, meticulous attention to details and stunning two-tone colours make this model a real marvel!
Have questions about customization or shipping? Get in touch with us today!
Our totally redesigned Ray 2 series of recumbent bicycles are the third generation of the beloved Ray 1, which first introduced in 1999 as a new alternative to conventional and tiring cycling. Our extensive research and development during last 20 year resulted unprecedented workmanship, comfort and performance of these new Ray 2 models
They come with several innovative features including our most comfortable seats, electric-assist-ready stem and a unique folding mechanism, which allows easier transportation. They are stylish, lightweight, exceptionally comfortable, and built to last. Their wide gear inch ratios offer great performance on any occasions.
Their well-thought out geometry makes them versatile as they are globally used on congested urban streets, commuting to work and long tours out of town.
Their flawless suspension system and the sophisticated seat design ensure smooth and pleasant rides on any bumpy paths while fast and agile on roads. They come in two sizes covering riders from 4’-10” to 6’-8” (148-203cm) weighing up to 300Lbs. (135kg).
Ridden over 40 million km worldwide, they are believed and trusted to be the best CLWB recumbent bicycles ever built!
Try one and you will never go back to any other bike again!
RAY 2X | Technical Specifications |
|---|---|
Frame: | AL7005 T6 heat-treated, disc brake, built-in kickstand bracket |
Seat: | Alloy frame with mesh, fully adjustable |
Saddle: | MAXARYA double-density foam, composite flex base, adjustable |
Handlebar: | MAXARYA alloy, 610mm width, matte black, 100mm rise, w/riser |
Stem: | Alloy matte black, adjustable/Electric-assist ready |
Fork: | MAXARYA full alloy, scotch bristle finish, 1 1/8” threadless, disc brake |
Headset: | MAXARYA internal, 44mm, sealed bearings |
Bottom bracket: | FPD CH55 alloy, sealed |
Crankset: | MAXARYA alloy 32T w/alloy chainguard (optional 152mm) |
MidDrive set: | MAXARYA alloy 44/32/24T |
Left chain: | KMC Z1 EPT chrome, non-slip, rust-proof |
Right chain: | SHIMANO X-G 10 speed |
Rear shock: | Rockshox Morach R Air (optional Monarch RL Air high volume) |
Front derailleur: | Shimano XT |
Rear derailleur: | Shimano Dynasis, 10(optional 11) speed |
Shifter: | Shimano Dynasis, 10×3(optional 11×2) |
Cassette: | Shimano XT 11-36T (optional 11-42/46T) |
Brakes: | Avid BB7 disc brake (optional Shimano Deore hydraulic disc brake) |
Front wheel: | MAXARYA alloy black, eyelets, sealed hub 32H |
Rear wheel: | MAXARYA alloy black, eyelets, sealed hub 8/9/10/11 speed, 32H |
Spokes: | DT Swiss stainless steel, silver 14G |
Tires: | Schwalbe Marathon Plus 1.75”x20”, puncture-proof |
Pedals: | FPD alloy, black body w/cateye reflector |
Overall length: | S: 72” (1,830mm) L: 76” (1,930mm) |
Wheelbase: | S: 53”, (1,350mm) L: 56.5” (1,430mm) |
Seat height: | 26”-27” (660-685mm) |
BB height: | 20” (510mm) |
Weight: | 30.5 Lbs. (13.5kg) |
Weight limit: | 300 Lbs. (135 kg) Combined rider, bike and cargo |
Rider’s height: | S: 4’ 10”-6’ 2” (148-188cm) L: 5’ 8”-6’ 8” (173-203cm) |
Gear inch ratio: | 18”-112” (46-284cm) |
Colour: | Copper, True Blue, Sport Yellow, Lava Red, Lime Green (w/metallic gray) |
MSRP: | Standard: $2,795US Large: $2,820US |
Ride longer and Pain-free!
The wider seat improves blood circulation and distributes your weight evenly—reducing pressure points and enhancing overall comfort.
It eliminates shoulder and neck discomfort.
Your hands rest naturally on the handlebars with no need to grip tightly.
Unprecedented performance & balance
Engineered for control, speed, and futuristic style.
The totally redesigned Ray 2 now comes with a unique folding mechanism, one of its many innovative features…it gets to 34% of its regular size fitting inside the trunk of most cars and is perfect for air travel.
Now, could be the most refined CLWB recumbent bicycle ever built!
Innovative Folding Feature
New 152 MM Crankset
MAXARYA Ray 2 newly upgraded cranksets now include a special edition for shorter riders and those who suffer from knee/hip or ankle injuries.
The shorter arms decrease the flexion angle of knees resulting minimal pressureon those vulnerable joints.
Designed and made by MAXARYA, this patented innovative folding jointoffers maximum adjustability of the handlebar and also makes the bikes ready for transportation in seconds.
It is sturdy, precise and attractive. The newly redesigned version comes with a quickrelease and thumb nut for even easier function.
LOCBUSTER Folding Joint
