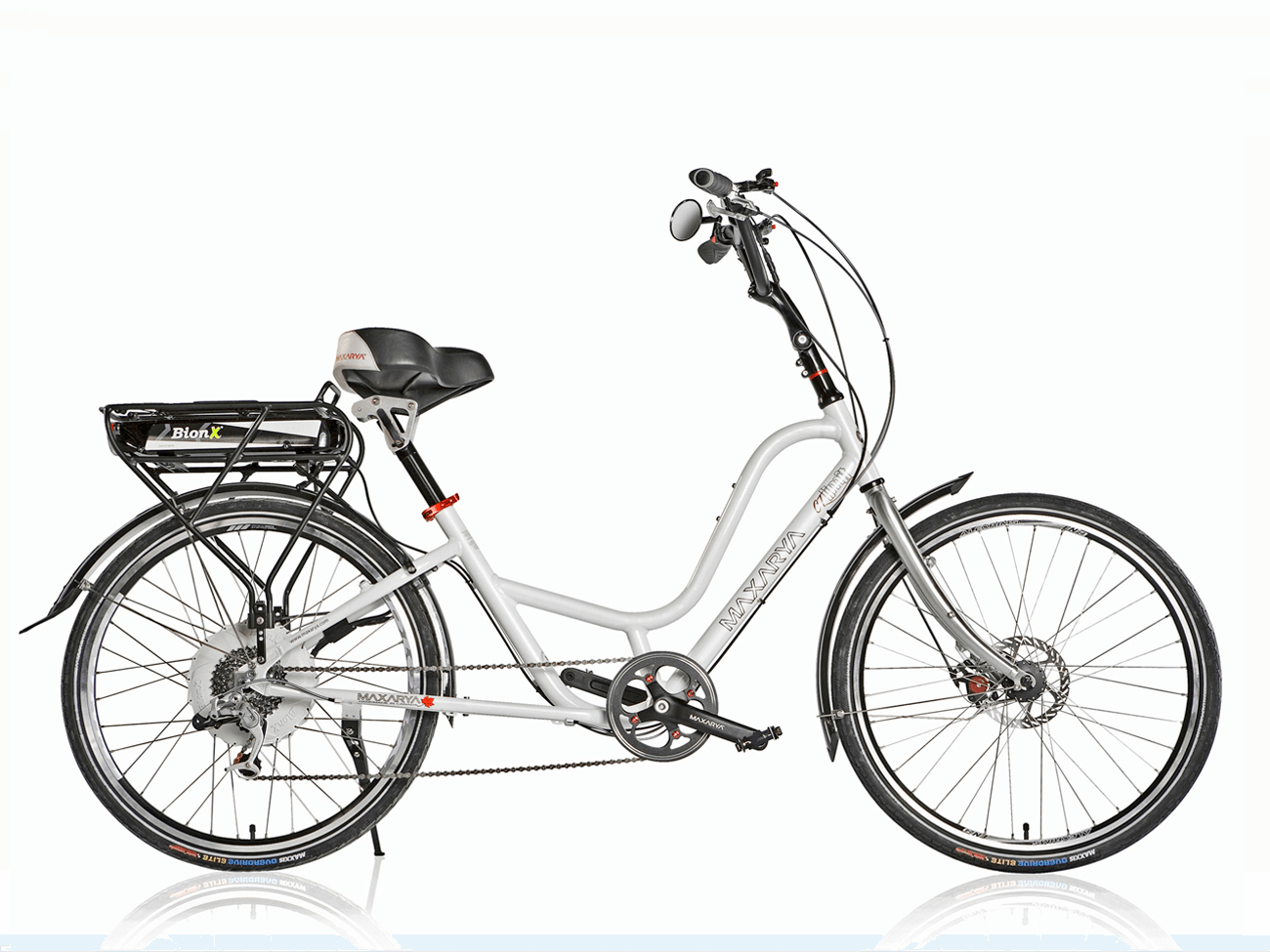

CT LIMIT E
CA$3895.00CA$2995.00
An efficient and refined electric-assist system on a city bike could be the best feature if used for longer distances or hilly streets. By saving time and money on daily commutes or shopping you also save the planet. Although all CT LIMIT frames are electric-assist ready, we spent time on many aspects of an ideal electric-assisted city bikes and created a trouble-free, efficient, lightweight and high performance city bikes who appreciate class and quality. CT LIMIT E can be ordered with a super lightweight 250W front drive or 350W/500W rear hub drive for those who expect more power and performance. The bike still can be used without electric-assist as a regular bike if you intend to get some exercise too.
CT LIMIT SD | Technical Specifications |
|---|---|
Frame: | AL7005 T6 heat-treated, disc brake/ V-brake, Electric-assist ready |
Saddle: | MAXARYA Double-density foam, composite flex base, adjustable |
Seat Post: | MAXARYA alloy, adjustable |
Handlebar: | MAXARYA alloy, matte black, 150mm rise, w/riser |
Stem: | Alloy black, adjustable |
Fork: | MAXARYA full alloy, 1 1/8” threadless, disc brake/V-brake |
Headset: | MAXARYA sealed w/45mm alloy cone spacer |
Bottom bracket: | FPD CH55 body, sealed |
Crankset: | MAXARYA forged alloy 44/32/24T w/chainguard |
Chain: | KMC Z99RB silver, rust-proof |
Front derailleur: | Sram XGen |
Rear derailleur: | Sram X.9 |
Cassette: | Sram PG970 11-34T |
Shifter: | Sram X.9 3×9 speed |
Brakes: | Avid BB7 disc brake |
Front wheel: | Alexrim EN24 alloy, black, CNC side wall, 36H |
Rear wheel: | Alexrim EN24 alloy, black, CNC side wall, 8/9/10 speed, 36H |

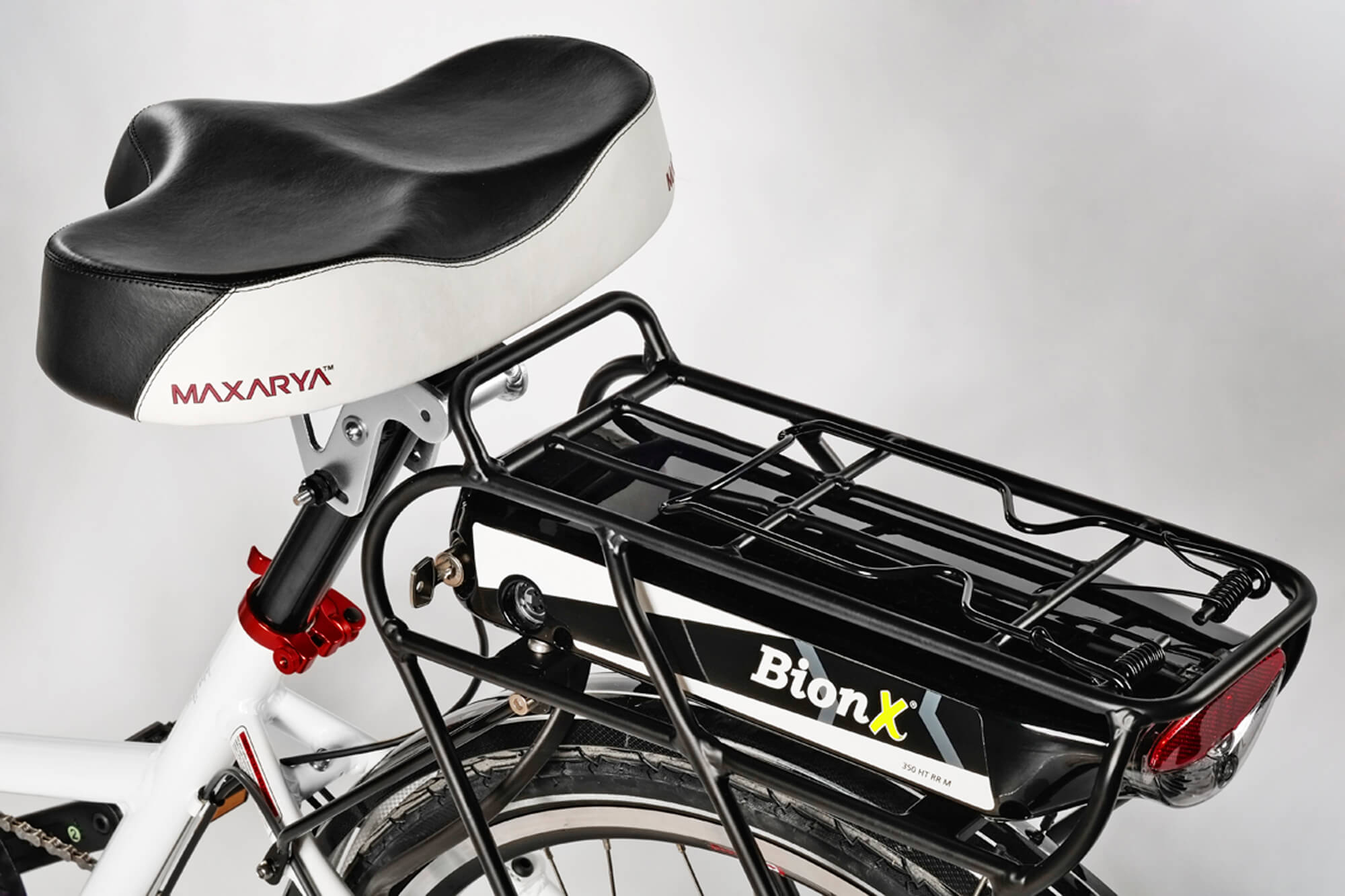

Electric system: | 250W/36V 350W/36V 500W/48W, rear rack battery pack |
Spokes: | Stainless steel, silver14G/13G |
Tires: | MAXXIS Overdrive Elite 1.75”x26” (42-559mm) puncture-proof |
Pedals: | FPD alloy body w/non-slip insert, w/Cateye reflectors |
Overall length: | S: 73” (1,855mm) L: 75.2” (1,910mm) |
Wheelbase: | S: 48.4”, (1,230mm) L: 51” (1,295mm) |
Seat height | 31.5-37.4” (800-950mm) |
BB height: | 11.5” (290mm) |
Weight: | 39-45 Lbs. (17.5-20.5kg) |
Weight limit: | 275 Lbs. (125 kg) Combined rider, bike and cargo |
Rider’s height: | S: 5”-6’ 1” (152-185cm) L: 5’ 8”-6’ 8” (173-203cm) |
Gear inch ratio: | 18-102” (46-259cm) |
Colour: | White w/clear coat |
Offers unparalleled comfort
so you can ride longer!
Performance with effortless control & precision.
Electric Assist System for longer & hillier rides.
