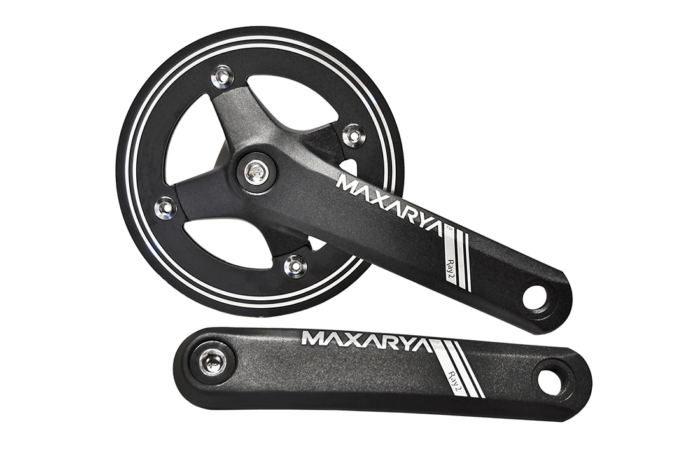

Crankset – Single 32T – Ray 1/Ray 2 – 152mm

//Crankset – Single 32T – Ray 1/Ray 2 – 152mm

Crankset – Single 32T – Ray 1/Ray 2 – 152mm

$85.99

This single chainring crankset made of lightweight alloy using cold-forge method for ultimate performance and reliability. This crankset is specifically developed for shorter riders and those who suffer from knee/hip or ankle injuries. The shorter arms decrease the flexion angle of knees while riding the bike resulting minimal pressure on knees and ankles.

It is specifically designed with reversed pedal threads for our Ray 1/Ray 2 bicycles and cannot be used on a regular bicycle.

Category:

Description

This single chainring crankset made of lightweight alloy using cold-forge method for ultimate performance and reliability. This crankset is specifically developed for shorter riders and those who suffer from knee/hip or ankle injuries. The shorter arms decrease the flexion angle of knees while riding the bike resulting minimal pressure on knees and ankles.

It is specifically designed with reversed pedal threads for our Ray 1/Ray 2 bicycles and cannot be used on a regular bicycle.

  • Chainrings: Single alloy 32T w/hardened steel black chainring
  • Speeds: 9-speed
  • BCD: 104mm
  • Bolts: 4 M8
  • Chainline: 45mm
  • Arm length: 152mm
  • Matching Bottom bracket: Square taper- 113mm
  • Centre bolt: M15 stainless steel
  • Material: Cold-forged alloy
  • Finish: Matte black hard anodized
  • Weight: 685g

Additional information

Weight1000 g
Dimensions30 × 20 × 10 cm
